Dental device

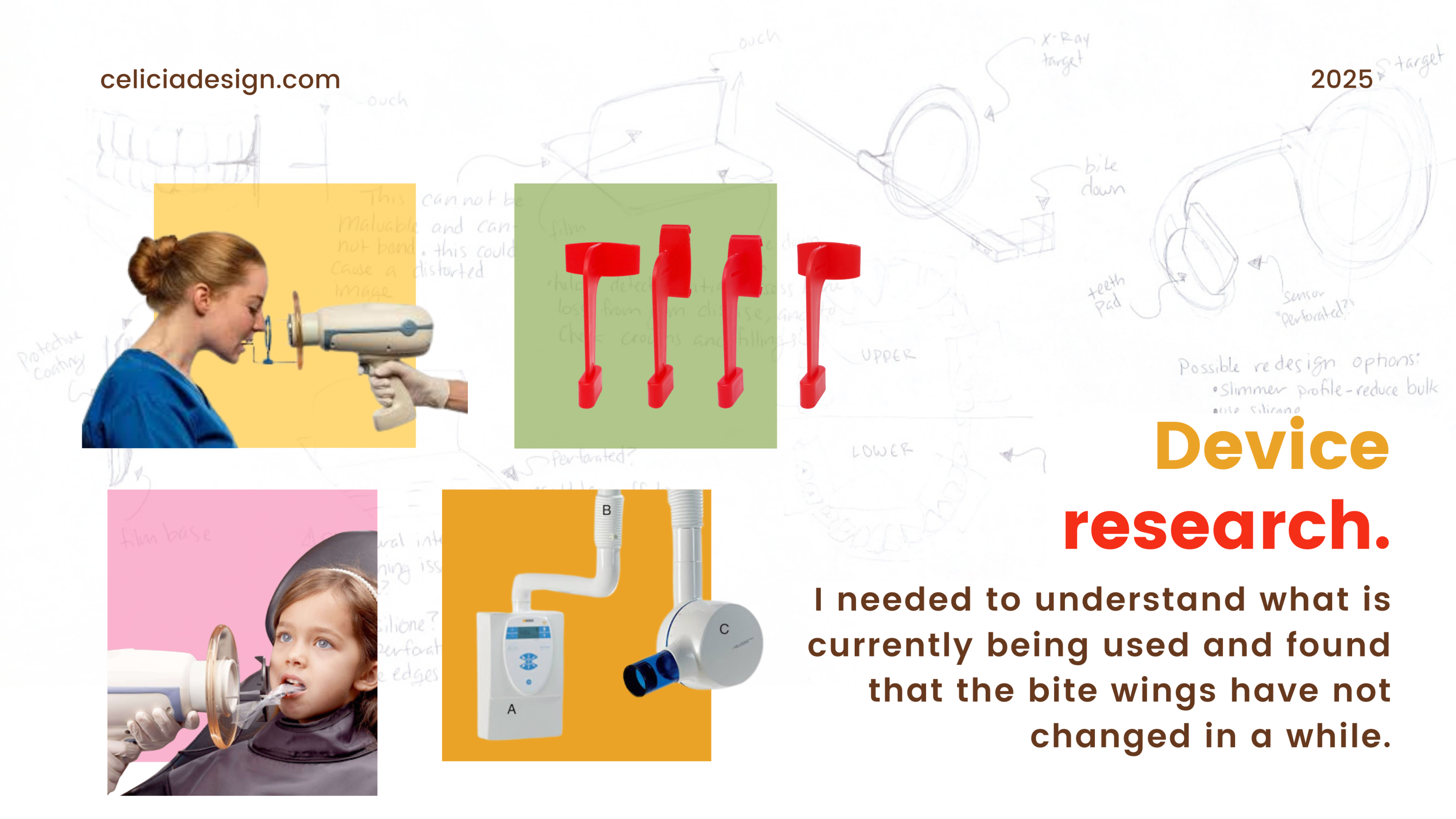

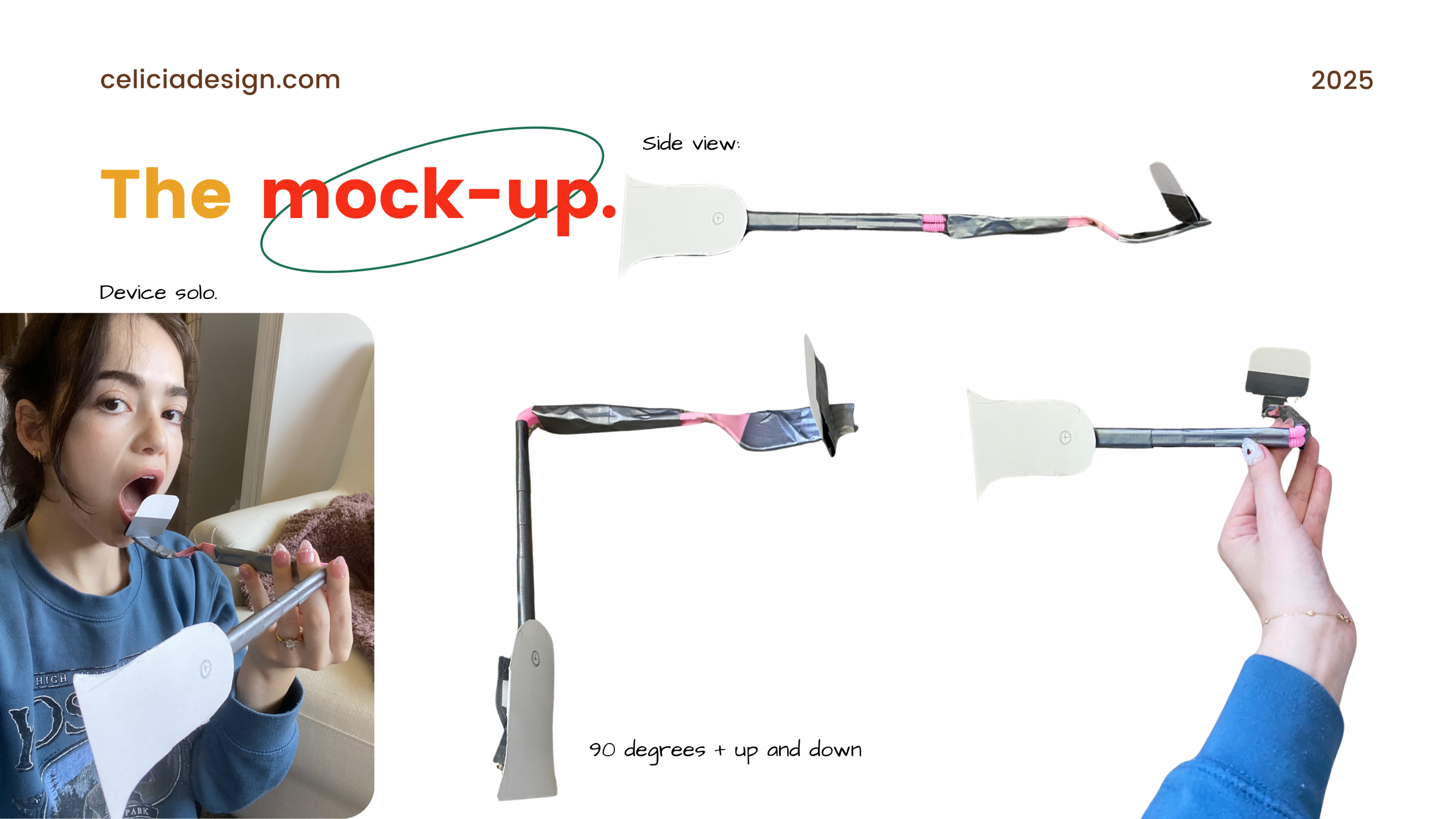

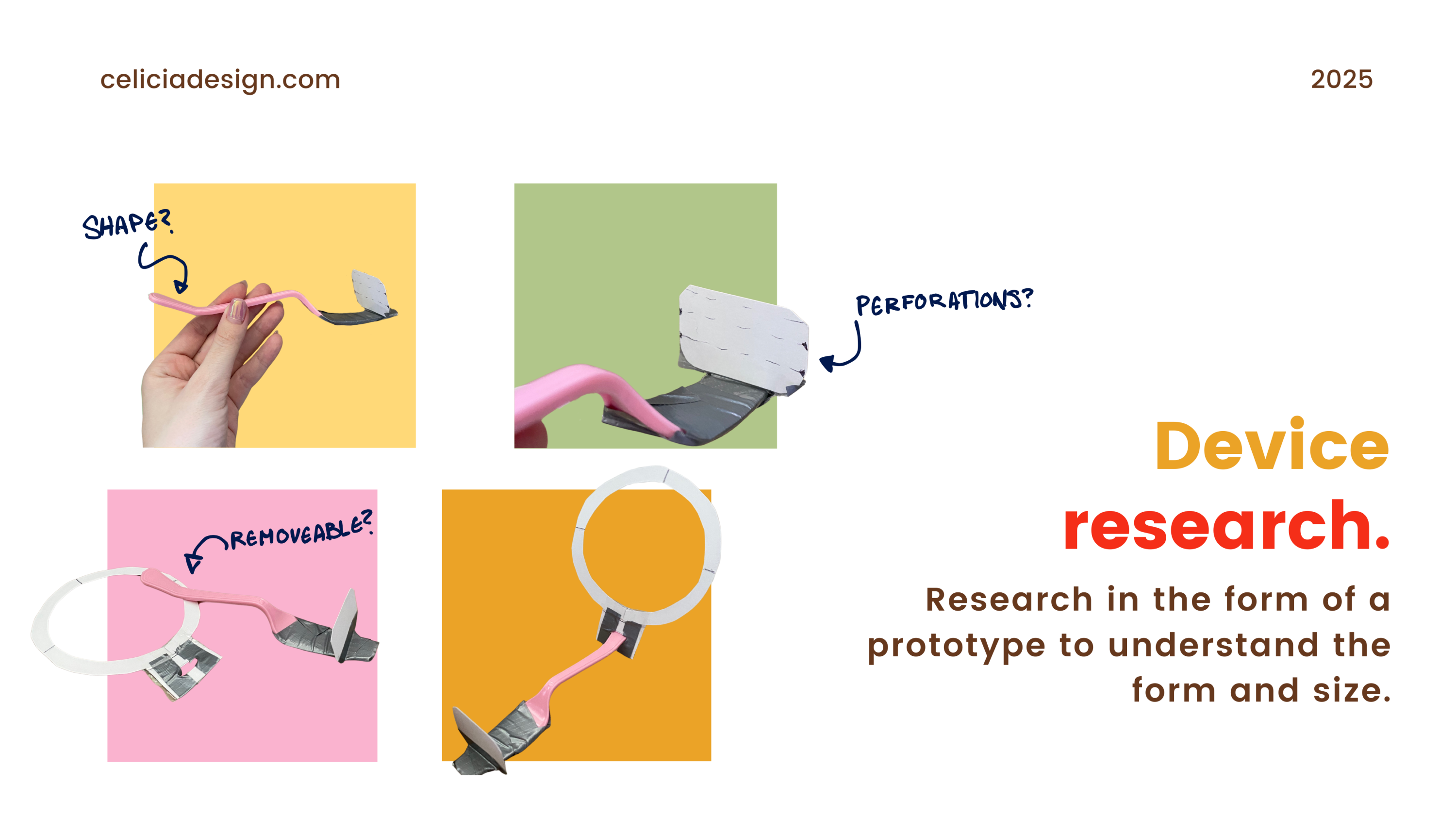

I wanted to further understand exactly trhe discomfort and mechanics of the device so I grabbed a few things from around my home to make a quick mock-up...

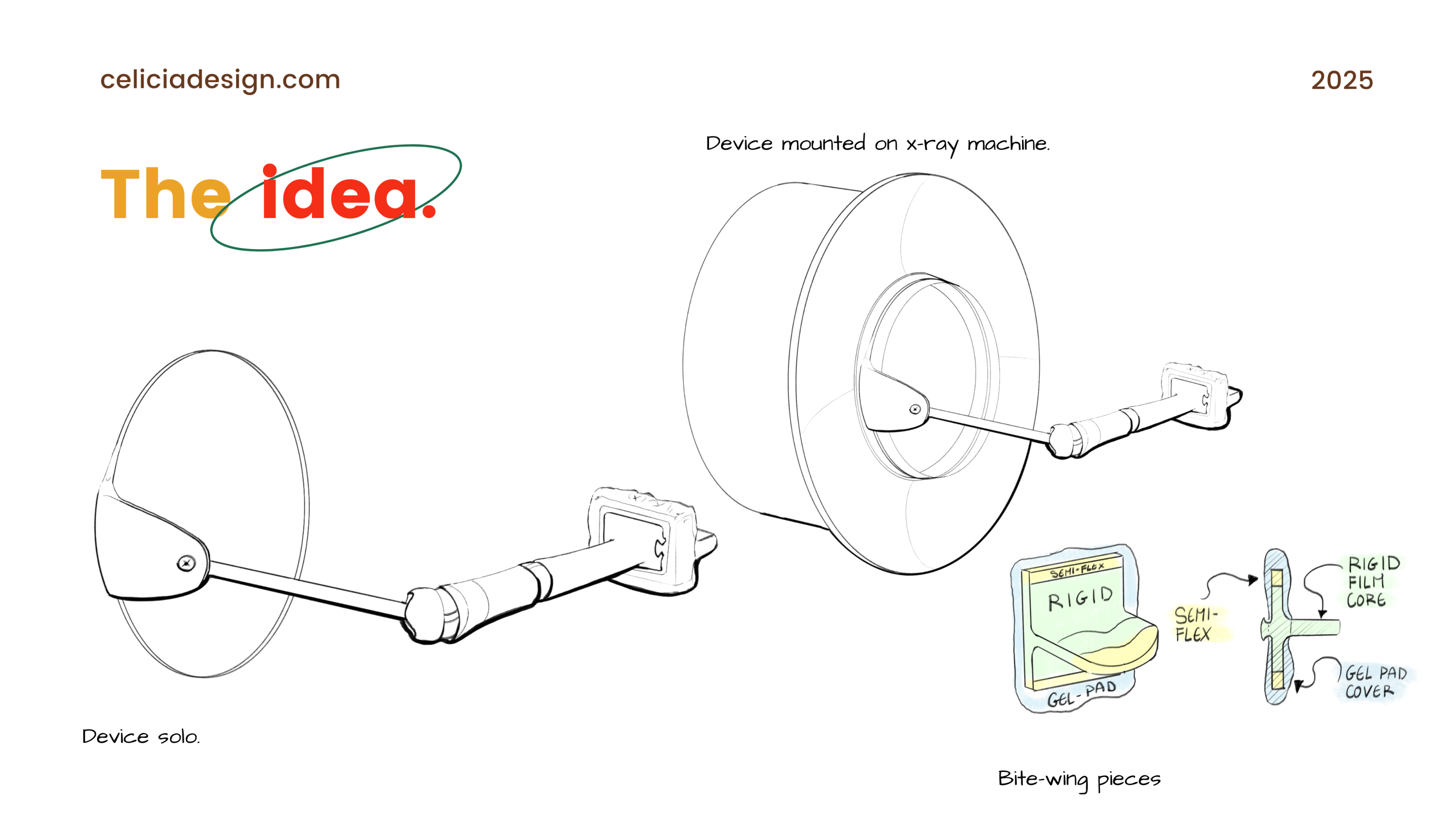

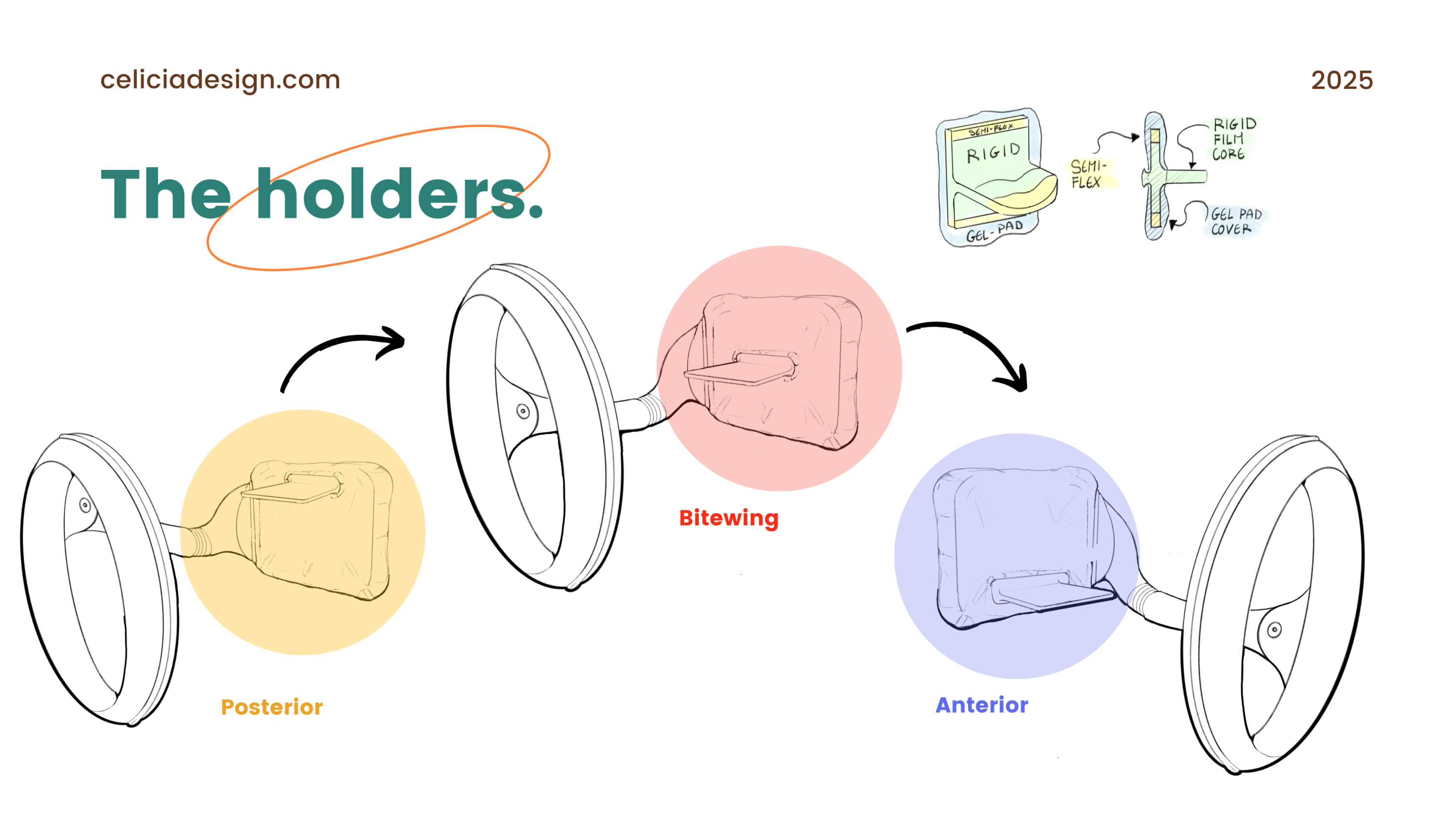

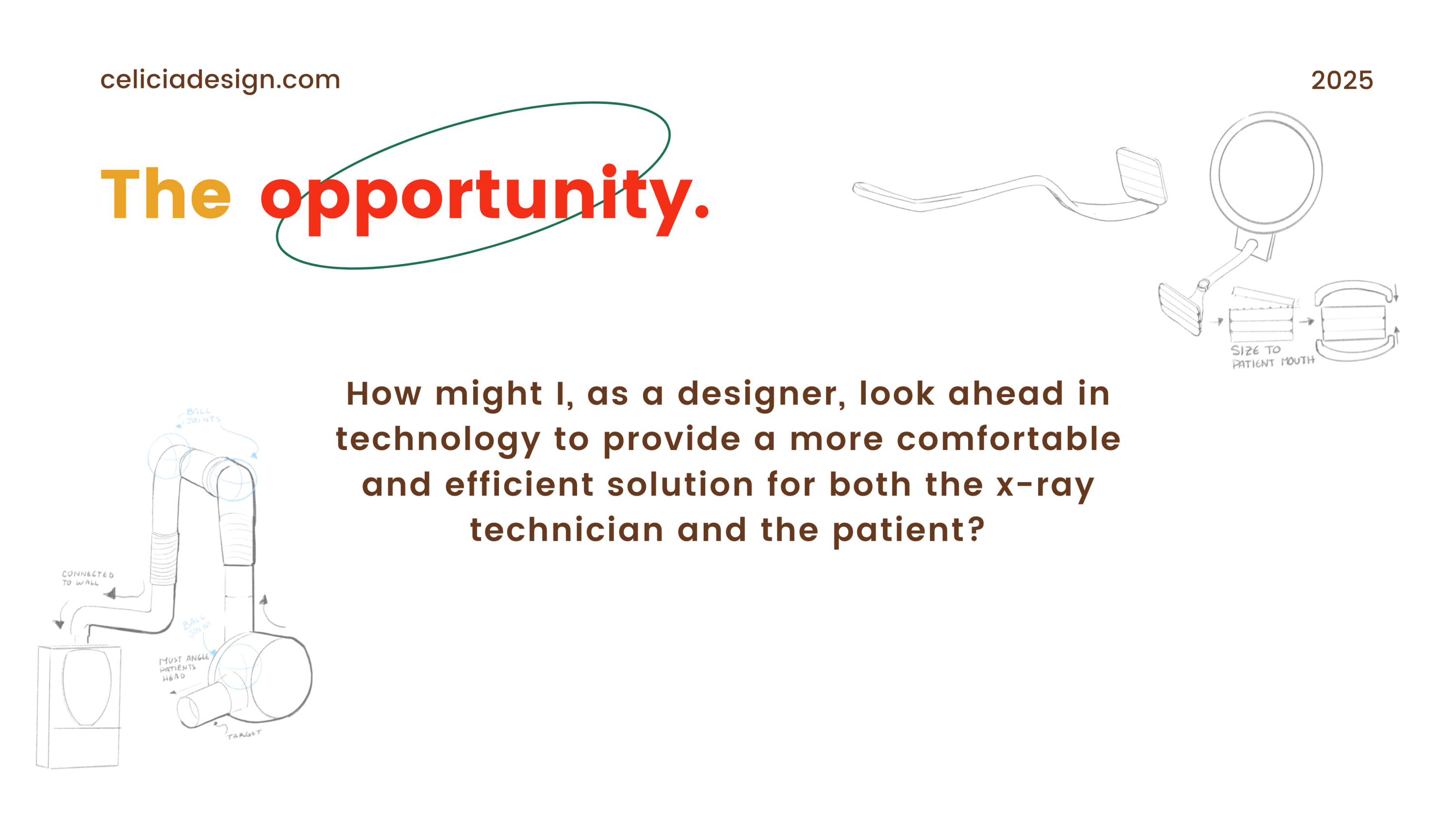

From this mock-up came my first design.

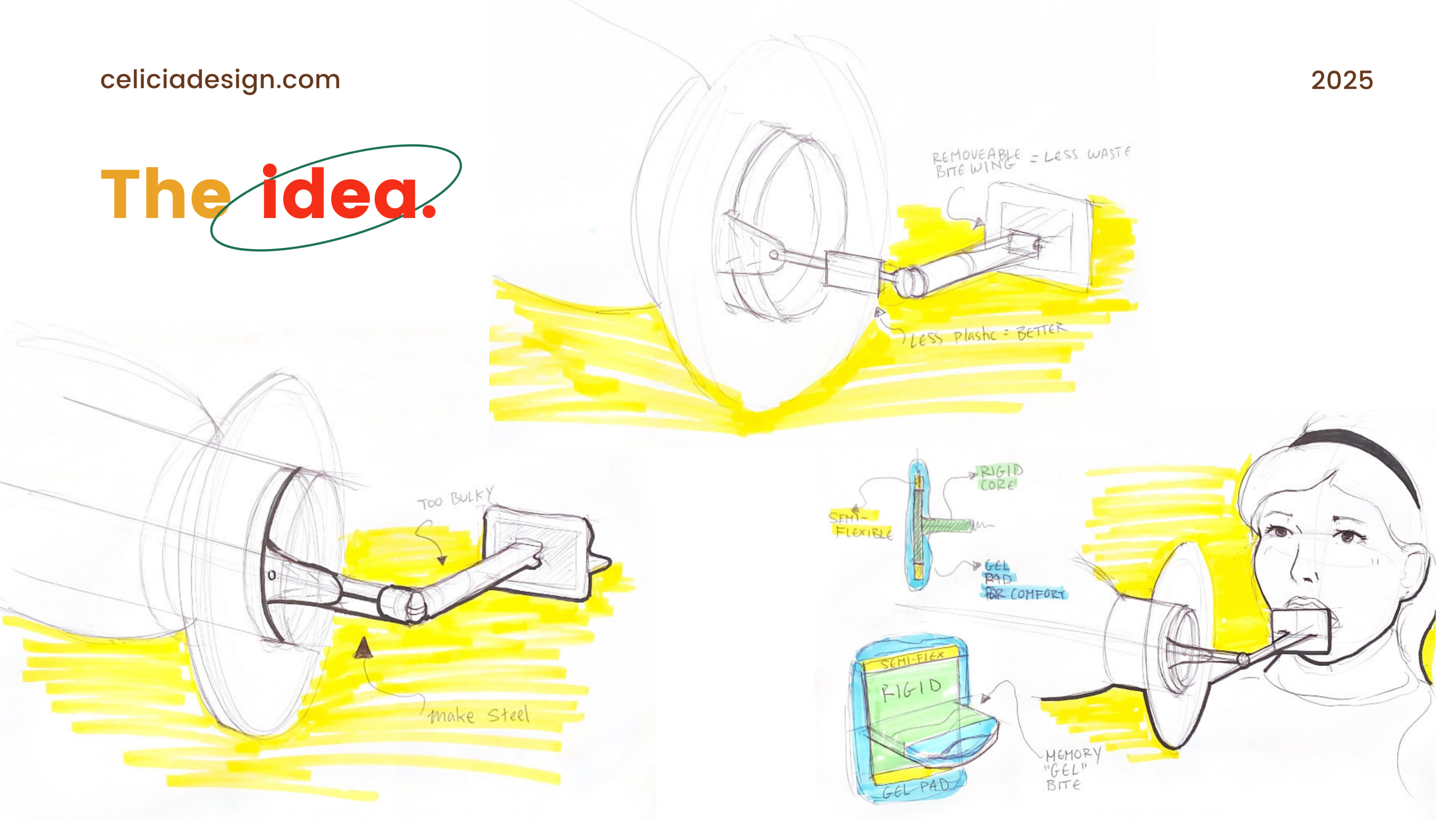

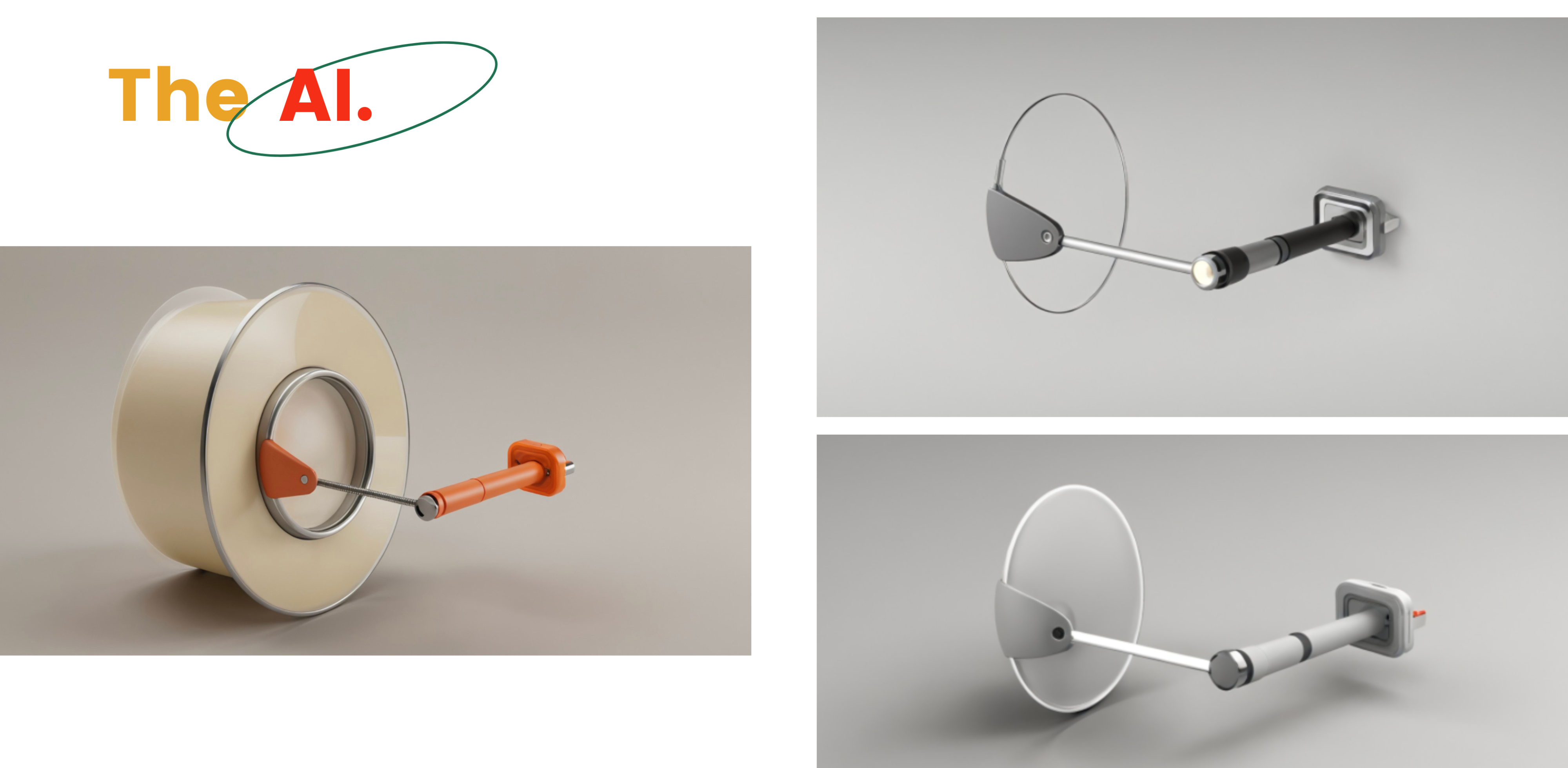

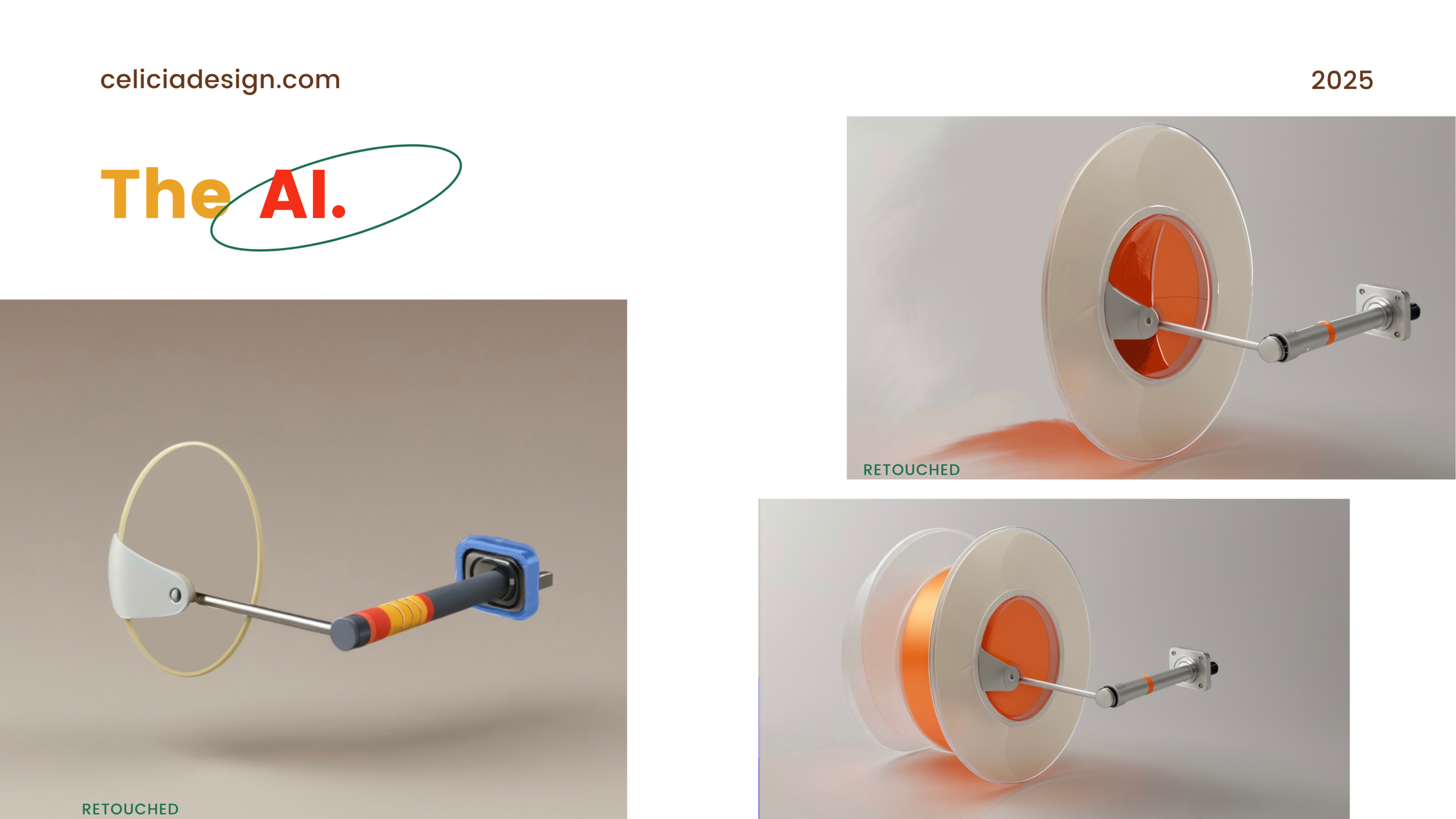

We were encouraged to use Vizcom to help render our sketches to give us both ideas on colorways and knew potential solutions.

Post x-ray technician critiques:

1. No metal in the way of the imaging

2. Re-adjust the positioning of the holder

3. Make the target much smaller



Back to the drawing board...

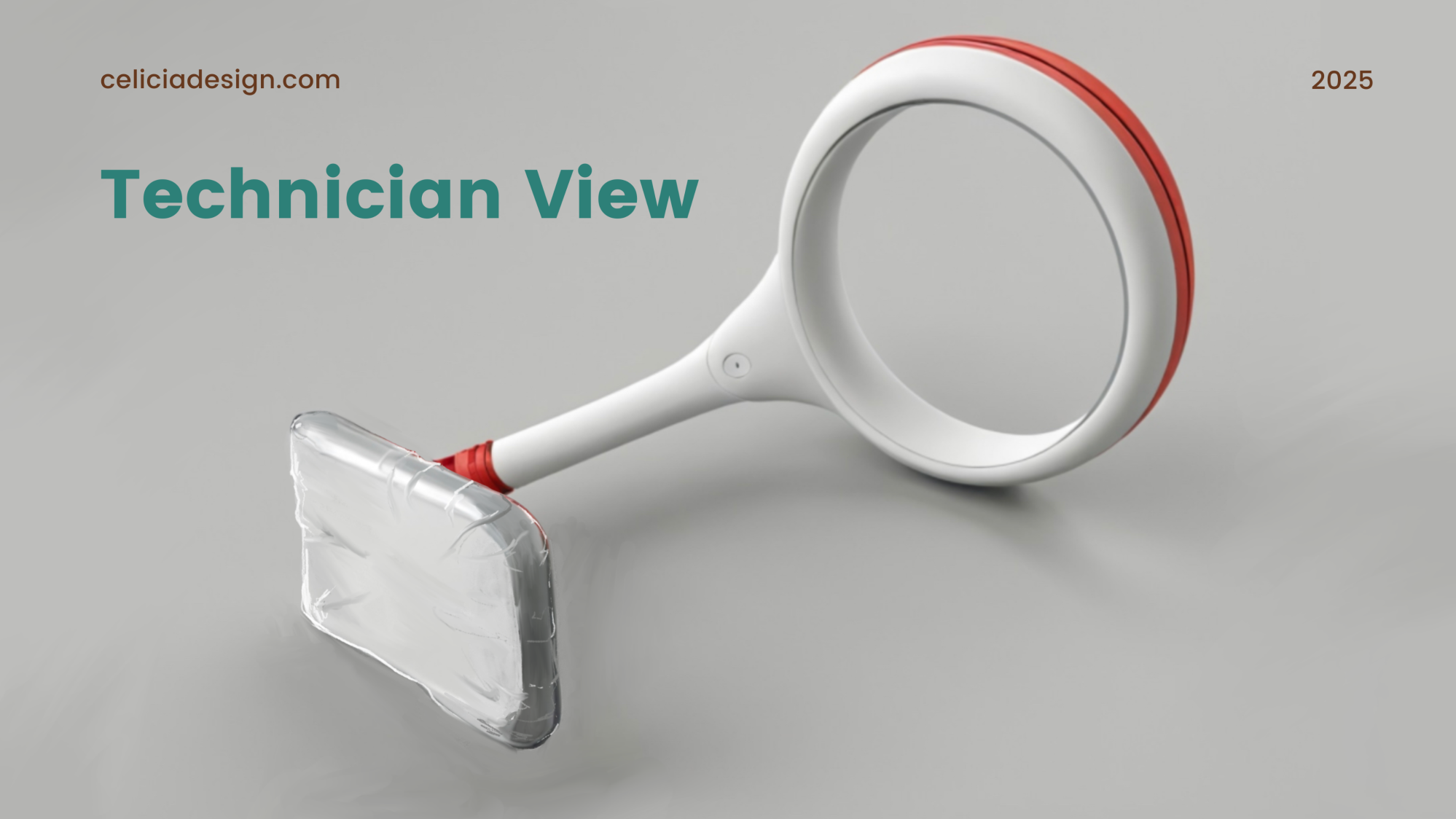

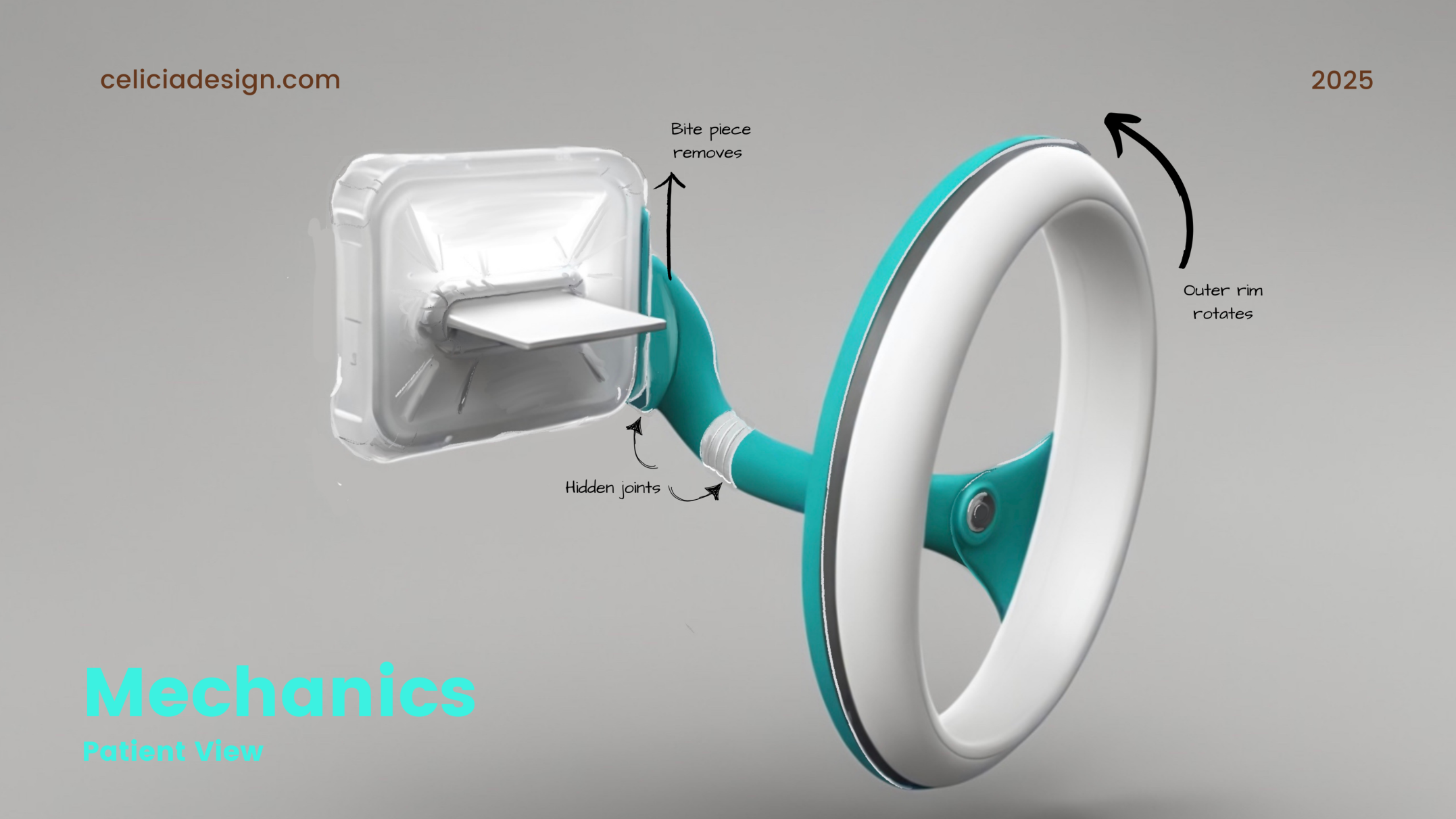

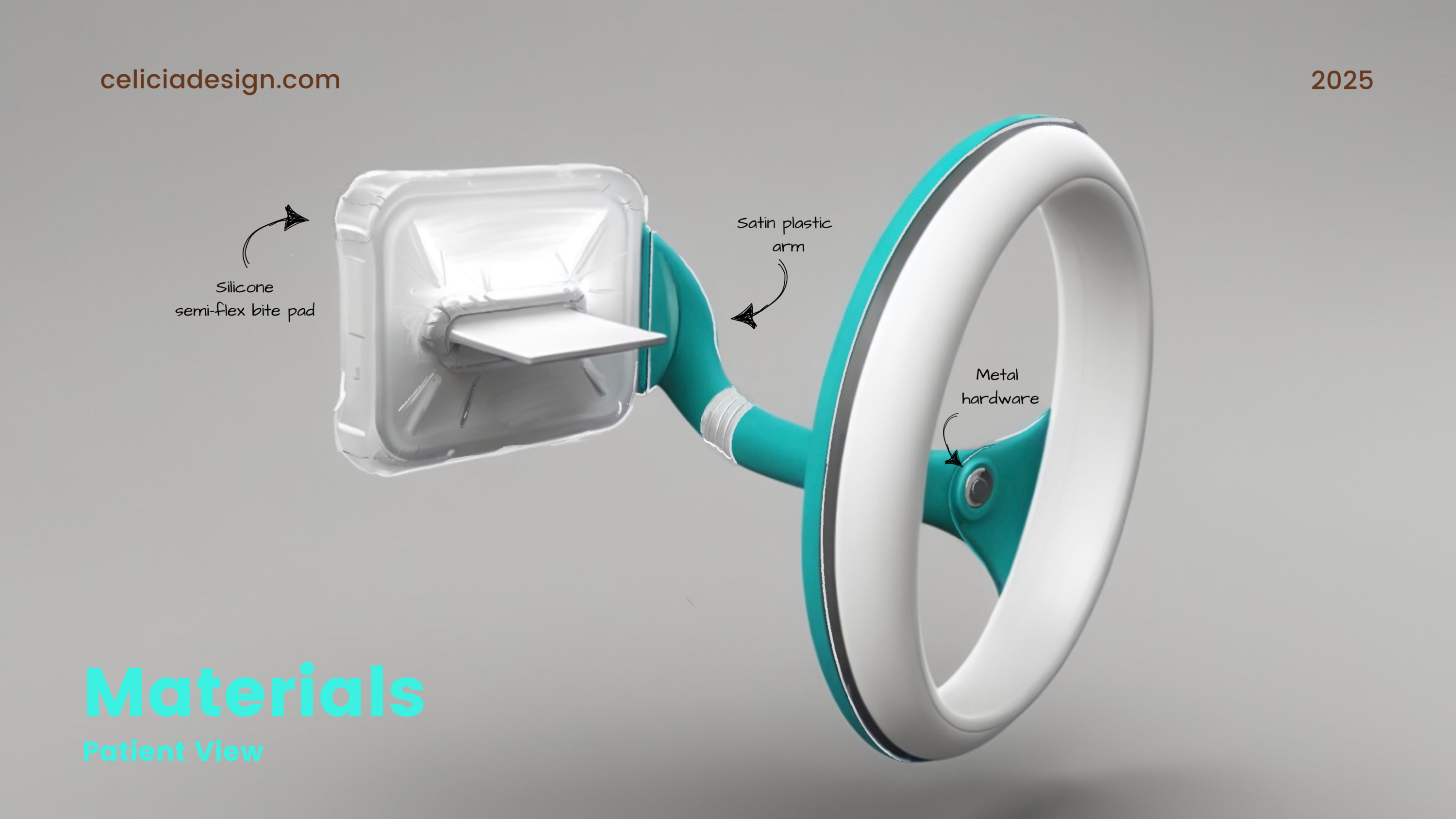

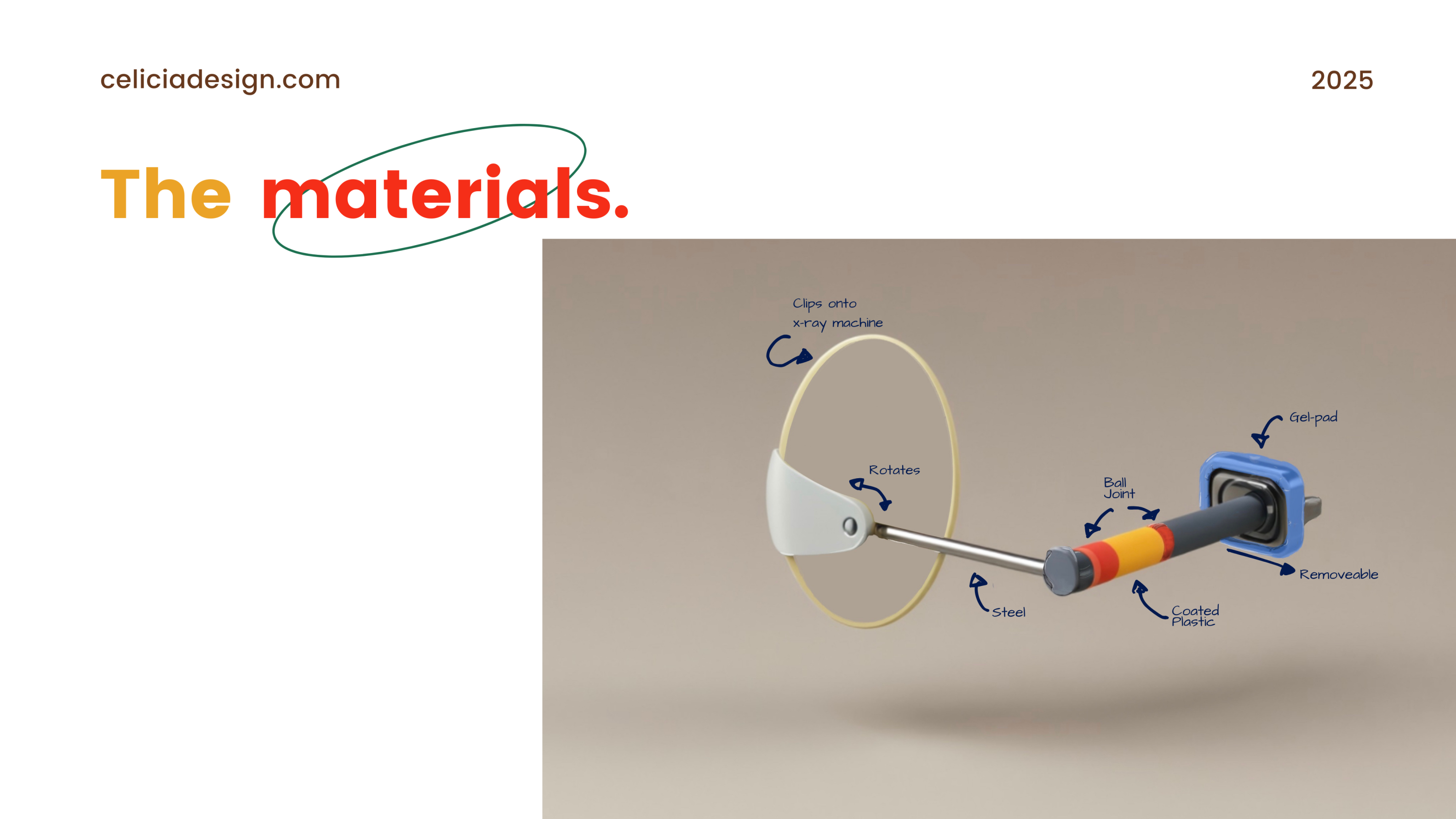

The Final Design

Disclaimer: Vizcom and procreate process used.

The conclusion:

The x-ray technician comments:

1. This design would create ease for both himself and the patient in the x-ray room.

2. The device would be so much more inviting to use.

3. The process would be more comfortable and efficient.
